Product Essentials

Arterial Blood Gas Analyzer

GEM Primer Series

• The GEM Premier 3500 system with Intelligent Quality Management (IQM) offers unprecedented testing simplicity, flexibility and reliability, in a system fully adaptable to the needs—and volume—of any point-of-care testing.

• The multi-use disposable GEM PAK and intuitive touchscreen provide zero-maintenance and simplicity.

• Large sampling area, barcode scanner and comprehensive test menu with multiple cartridge configurations offers faster, easier, efficient Acute Care diagnostics.

• Measured Analytes pH, pCO2, pO2, Na+, K+, Ca++, Glu, Lac, Hct.

• Derived (Calculated) Parameters HCO3–, HCO3– std, TCO2, BE(B) in vitro, BE(ecf) in vivo, sO2c, Ca++ (7.4)

• Test volumes: 150, 300, 450, 600**

• PAKs have a 3 wk onboard use-life

• **600 test volume PAKs have a 2 wk onboard use life


Arterial Blood Gas Analyzer

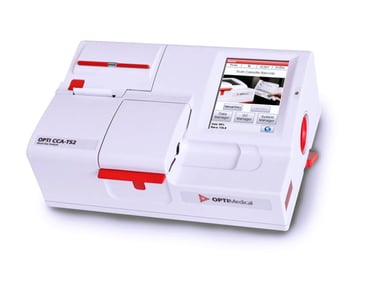

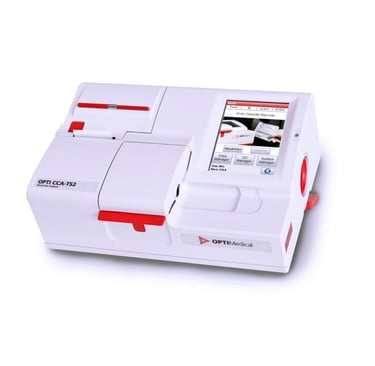

OPTI CCA TS2 ABG Analyzer

• Measurement Principle Optical fluorescence, reflectance.

• Measured Analytes pH, pCO2, pO2, Na+, K+, Ca++/Cl/ Glu, Lac, tHb.

• Sample Application Syringe, capillary or Comfort Sampler.

• Sample Type whole blood, plasma and serum.

• Requires minimal maintenance.

• Single use Test Cartridge (25 Test Pack)

• Zero standby cost—no reagents required.

• Long cassette shelf life—6–12 months from the date of manufacture.

• Interface ASTM, ASCII, POCT protocols via USB or Ethernet.

• Approvals CE, UL, IVDD, and FDA


Electrolyte Analyzer

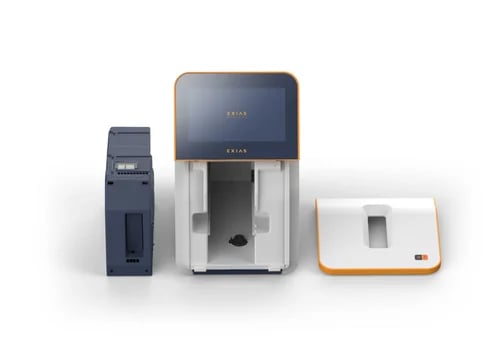

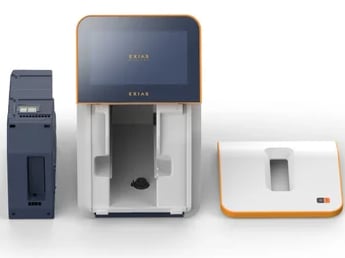

EXIAS eI1 Analyzer

• Measures Na+, K+, Cl-, Ca2+ as well as pH and Hct, in whole blood, serum, plasma and urine (undiluted).

• High accuracy, ease of use and the maintenance free system underline the operational functionality and outstanding performance.

• Robust and clever design combined with a compact footprint make the e|1 Analyzer well suited for both point-of-care environment and laboratory.

• Flexible sample input sample tube, capillaries, syringes

• All-in-one cartridge 150 samples / 42 days, 300 samples / 42 days, 600 samples / 28 days

• lowest sample volume 20 µL, fastest system 25 sec

• oQC on-board quality control (oQC), 3 level

• Calibration time 30 sec. for 2-point calibration Interval: 4, 8, 12 hr

• Touch display 7’’ / 800 x 480 px,

• Printer Built-in thermal printer

• Maintenance free cartridge includes Sensors, solutions, waste All wear & tear parts like tubings, sample input and valves etc

• Data exchange with LIS according to LIS2-A2 protocol (ASTM)

• Export of data to USB flash drive (results, settings, etc.)

• Network connection via LAN (RJ45)


Blood Gas Analysis POCT

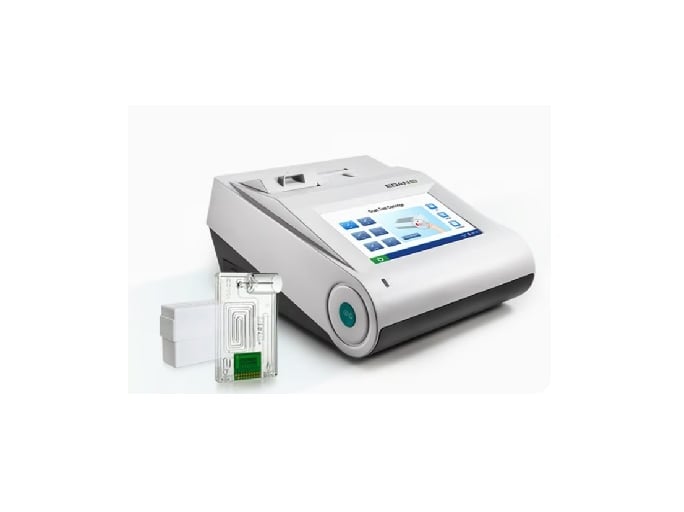

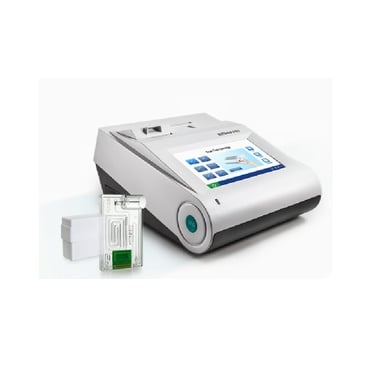

I-15 Blood gas Analyzer

• Provide critical testing anytime, anywhere

• Portable and Easy

  Compacted design with build-in battery, printer and barcode scanner

  Simply 3 steps to get comprehensive results within 1min after auto-sampling

  Zero maintenance, diagnose at the point of care, patient side, out in the field or exam room

• Single-use disposable cartridges: So no wastage

• Makes patient-side blood testing efficient and convenient

• Advanced biosensor technology

• Test up to 15 parameters at one time
